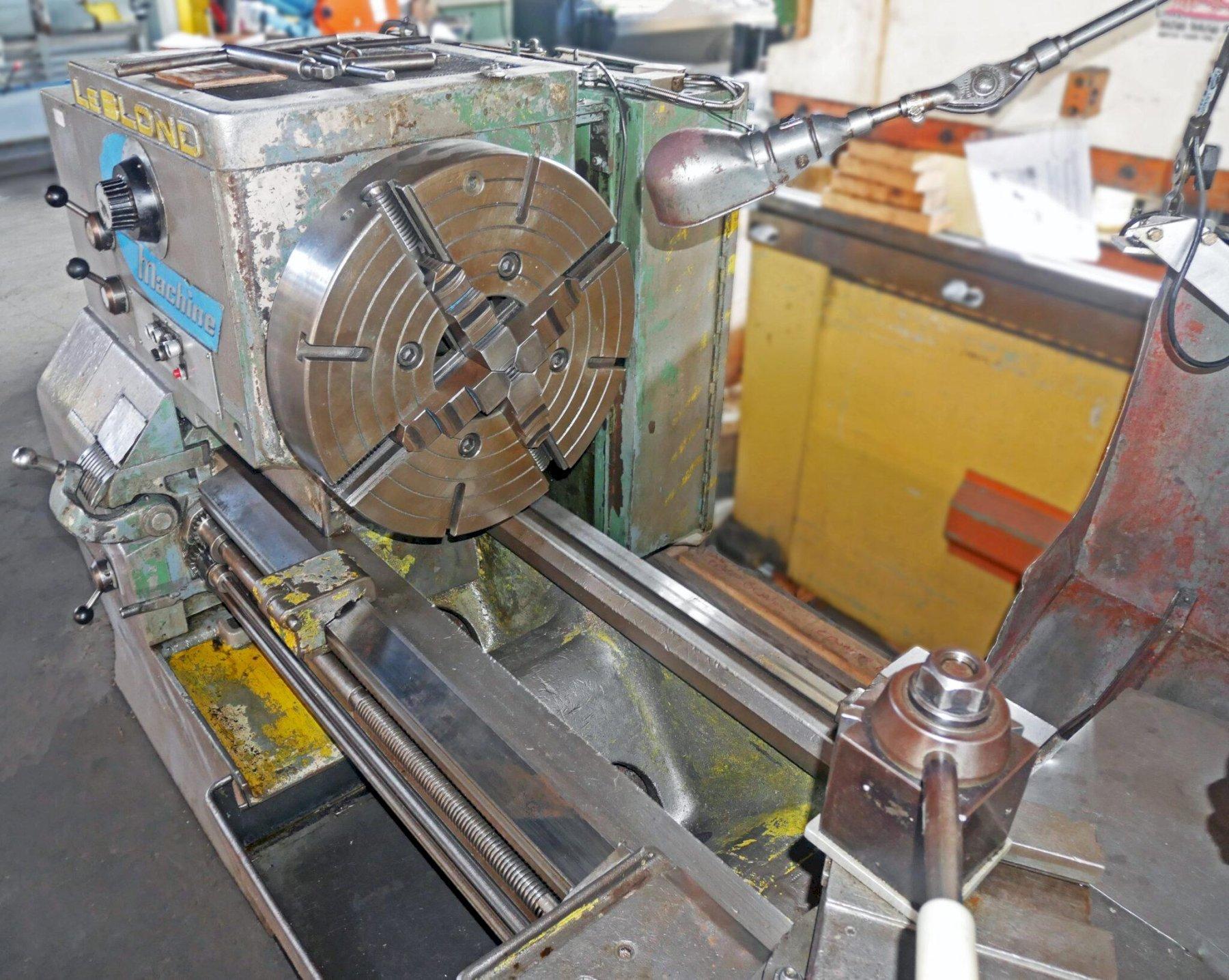

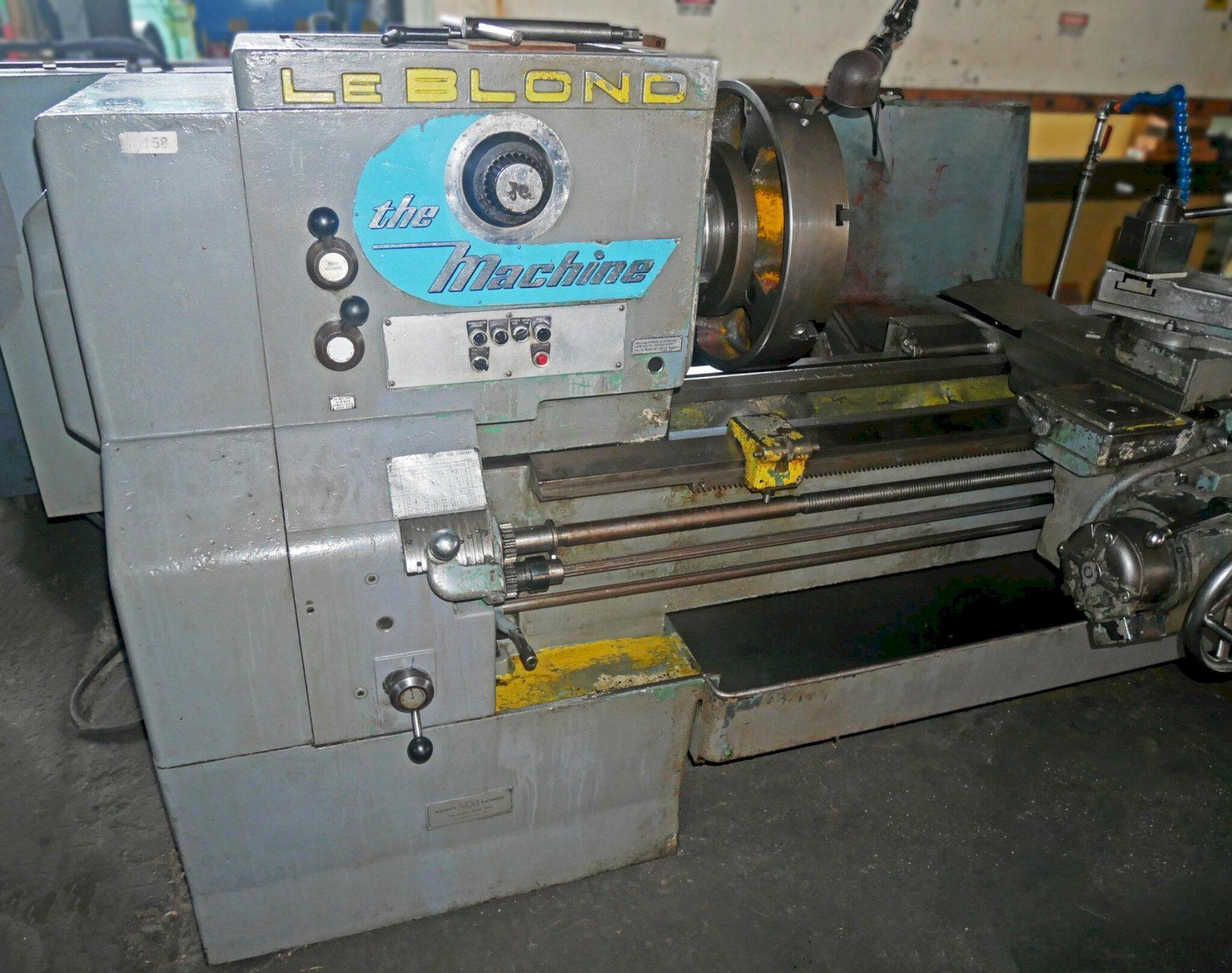

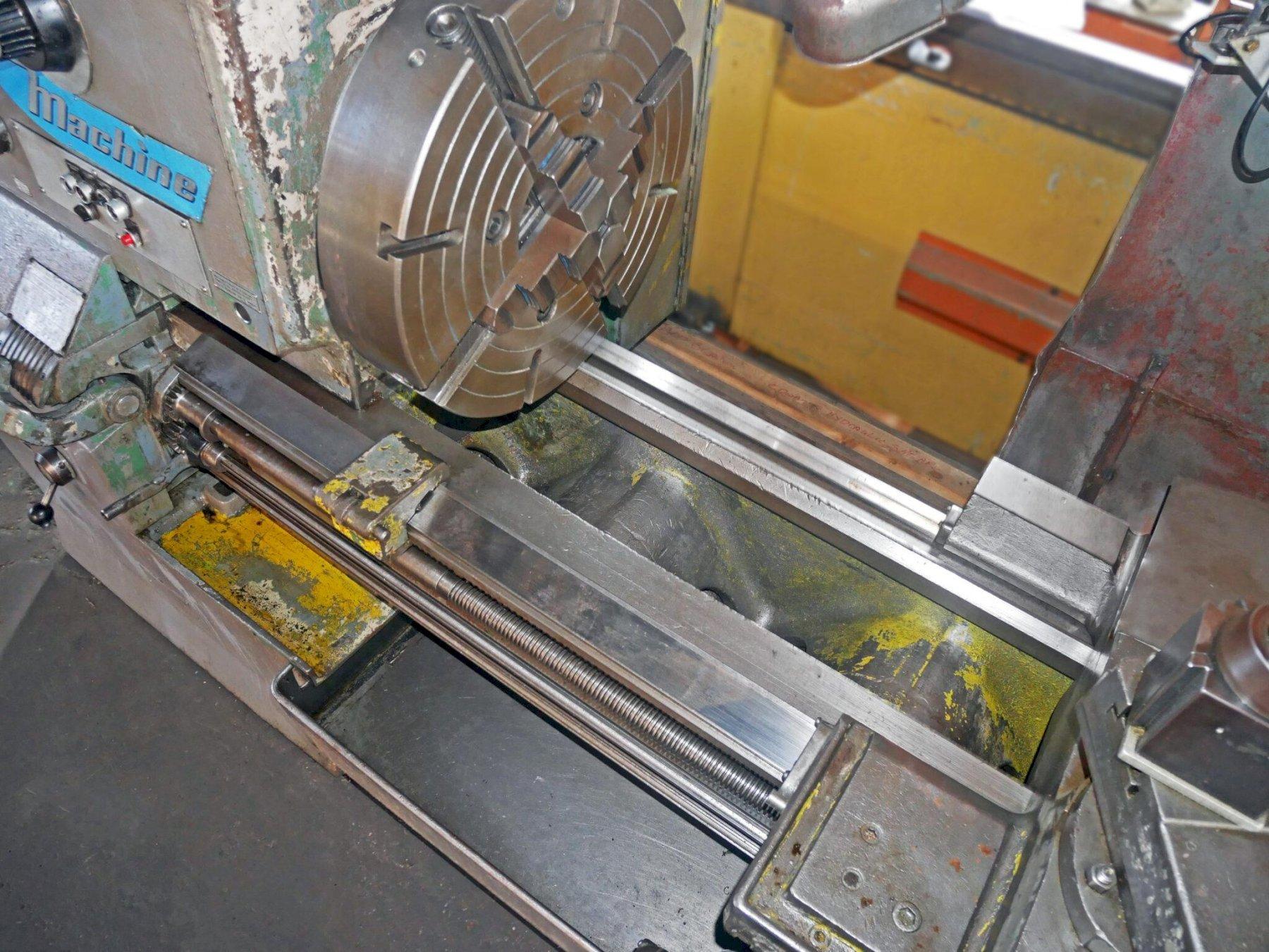

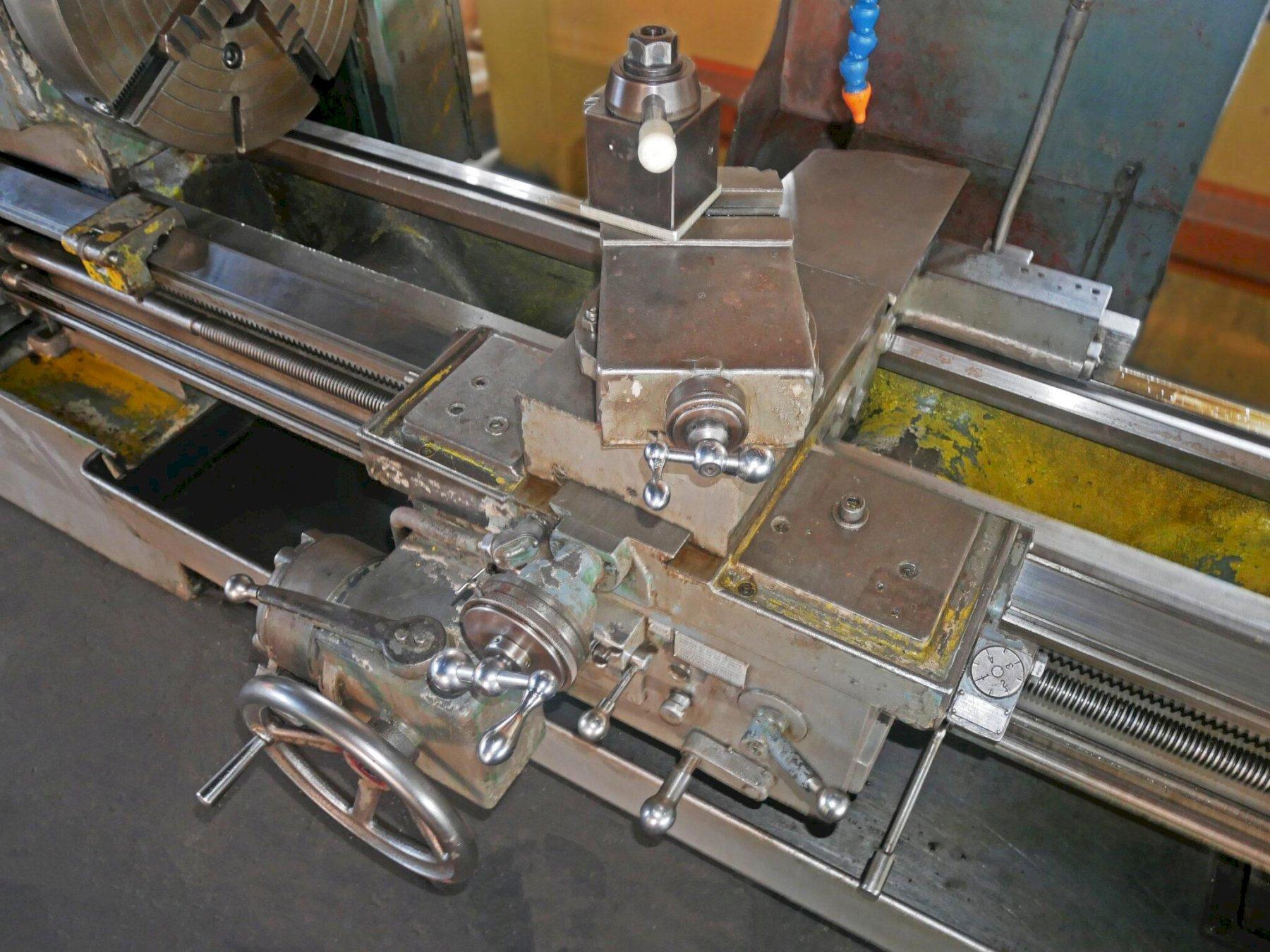

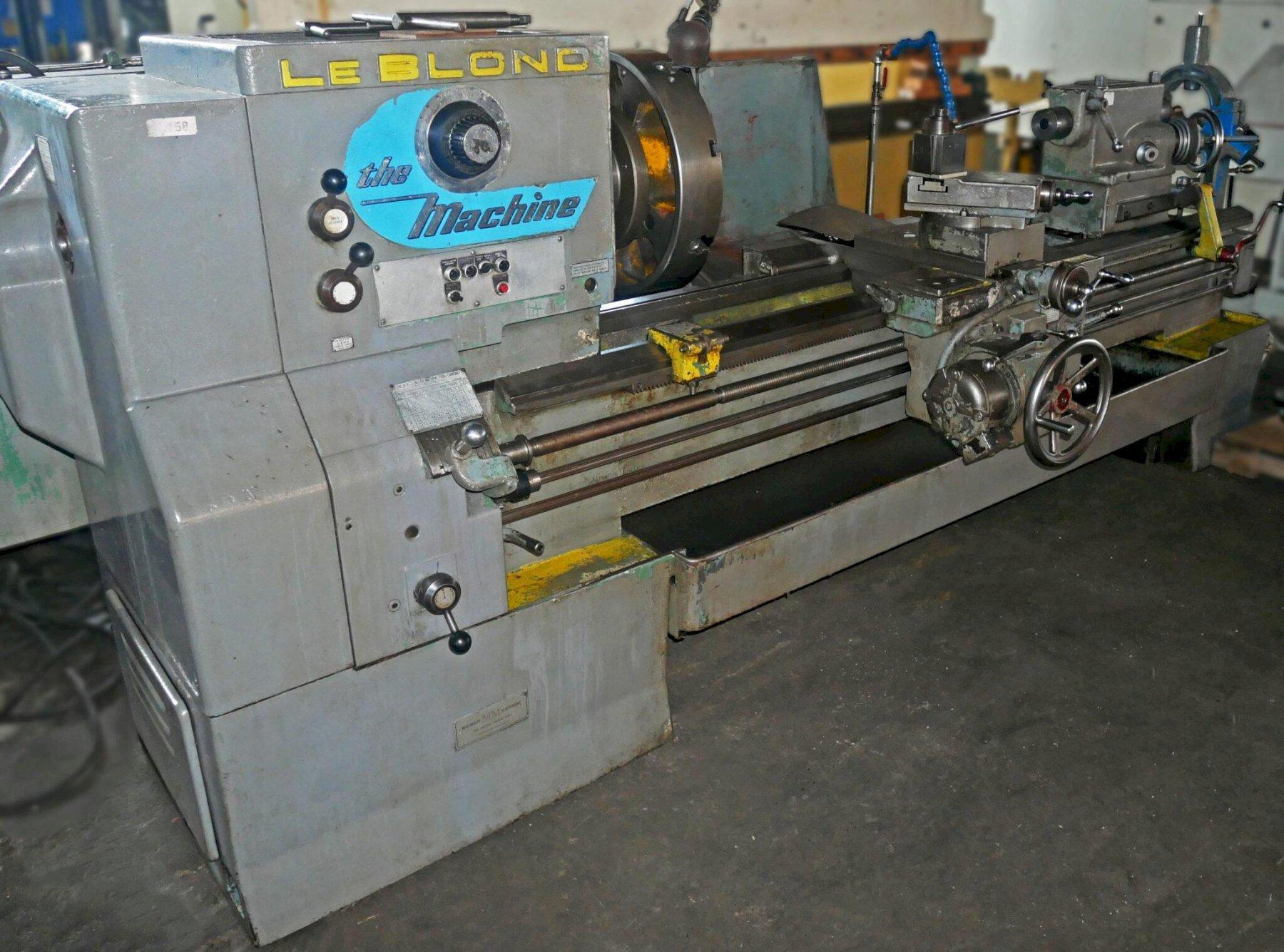

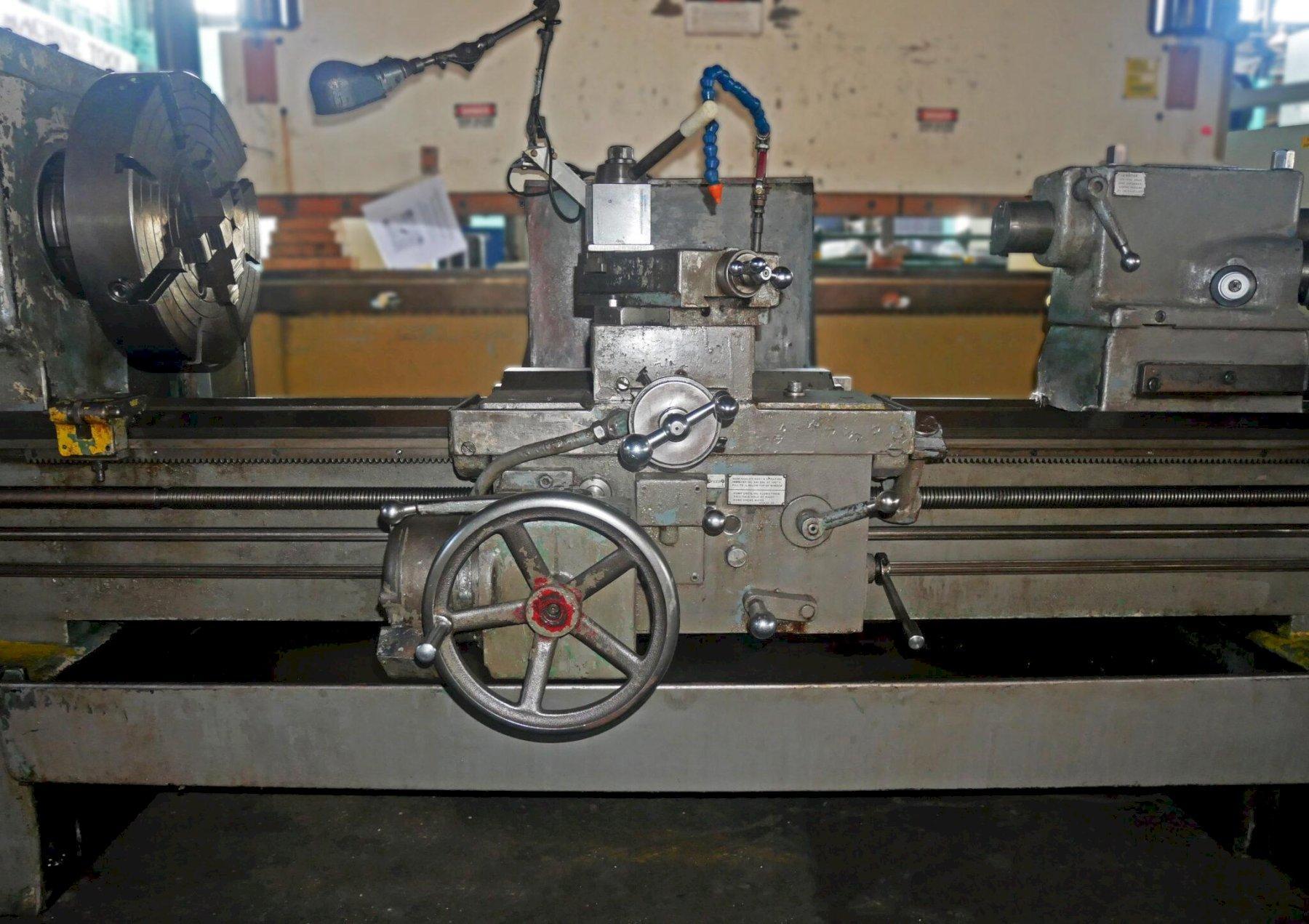

LeBlond ‘The Machine’ 26″ x 72″ Heavy Duty Engine Lathe, 20SL

LeBlond 'The Machine' 26" x 72" Heavy Duty Engine Lathe, 20SL

Brand
LEBLOND

Model
20SL

Type
Lathes, Engine

Stock #
8269075

Condition
Good

Year

Location
Baltimore, Maryland
United States

Request a Quote

Specifications

Swing	26-1/2"
Swing Over Cross Slide	19 inches
Distance Between Centers	72 inches
Bed Length	100"
Spindle Bore	2-3/16"
Threads	(48) 2 - 112 TPI
Feeds	(48) .0036" - .205"
Cross Slide Travel	11-1/4"
Tailstock Taper	MT #4
Tailstock Quill Travel	7 inches
Spindle Speeds at 10HP	27 - 1,080 RPM
Spindle Speeds at 20HP	54 - 2,160 RPM
Spindle Nose	8", D1 Camlock
Main Motor	20/10 HP - 230V / 3Ph
Weight	4000 pounds

Equipped With

4-Jaw Chuck, 19-3/4"
3-Jaw Chuck, 15"
Pump and Piping
Inch Threading
Steady Rest, 3/4" - 7" Capacity with Bronze Jaws
Steady Rest, 10"
Heavy Duty 2-Speed Worm-Operated Tailstock
Power Rapid Traverse
Chip Pan
Chase Dial
Collet Chuck
