Brand
SHARP
Model
1760K
Type
Lathes, Gap Bed
Stock #
8269076
Condition
Fair
Year
Location
Baltimore, Maryland
United States
| Swing Over Bed | 17 inches |
| Swing Over Cross Slide | 11 inches |
| Swing Over Gap | 26 inches |
| Gap Length | 8-1/2" |
| Distance Between Centers | 60 inches |
| Spindle Bore | 2.04" |

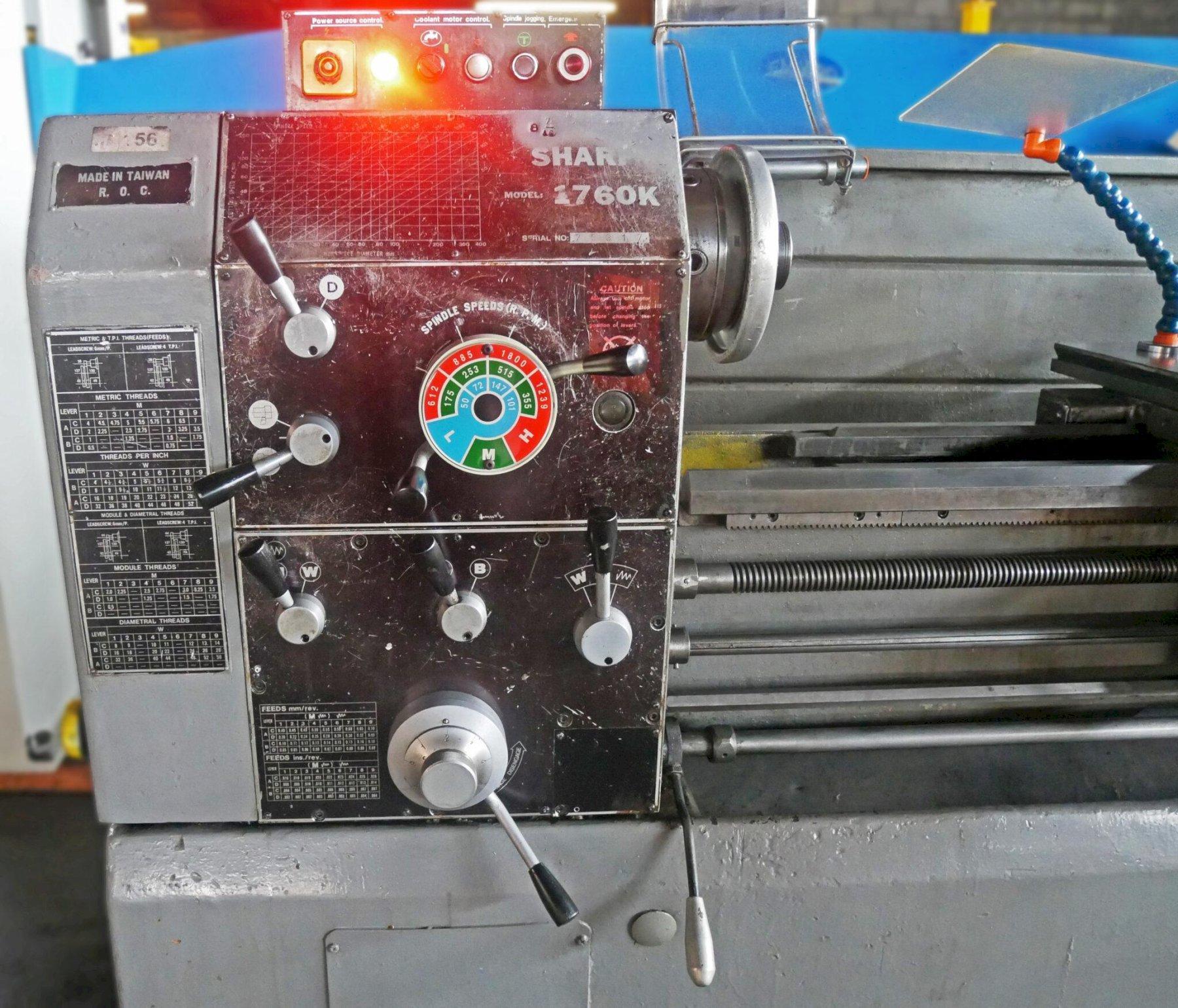

| Spindle Speeds | (12) 50 - 1,800 RPM |
| Spindle Nose | D1-6 |
| Inch Threads | (45) 4 - 56 TPI |
| Metric Threads | (42) 0.5 to 7mm |
| Longitudinal Feeds | (32) 0.002 - 0.028 IPR |
| Cross Feeds | (32) 0.001 - 0.0200 IPR |
| Cross Slide Travel | 9 inches |
| Compound Travel | 4-1/8" |
| Length of Taper per Setting | 16 inches |
| Bed Width | 12 inches |

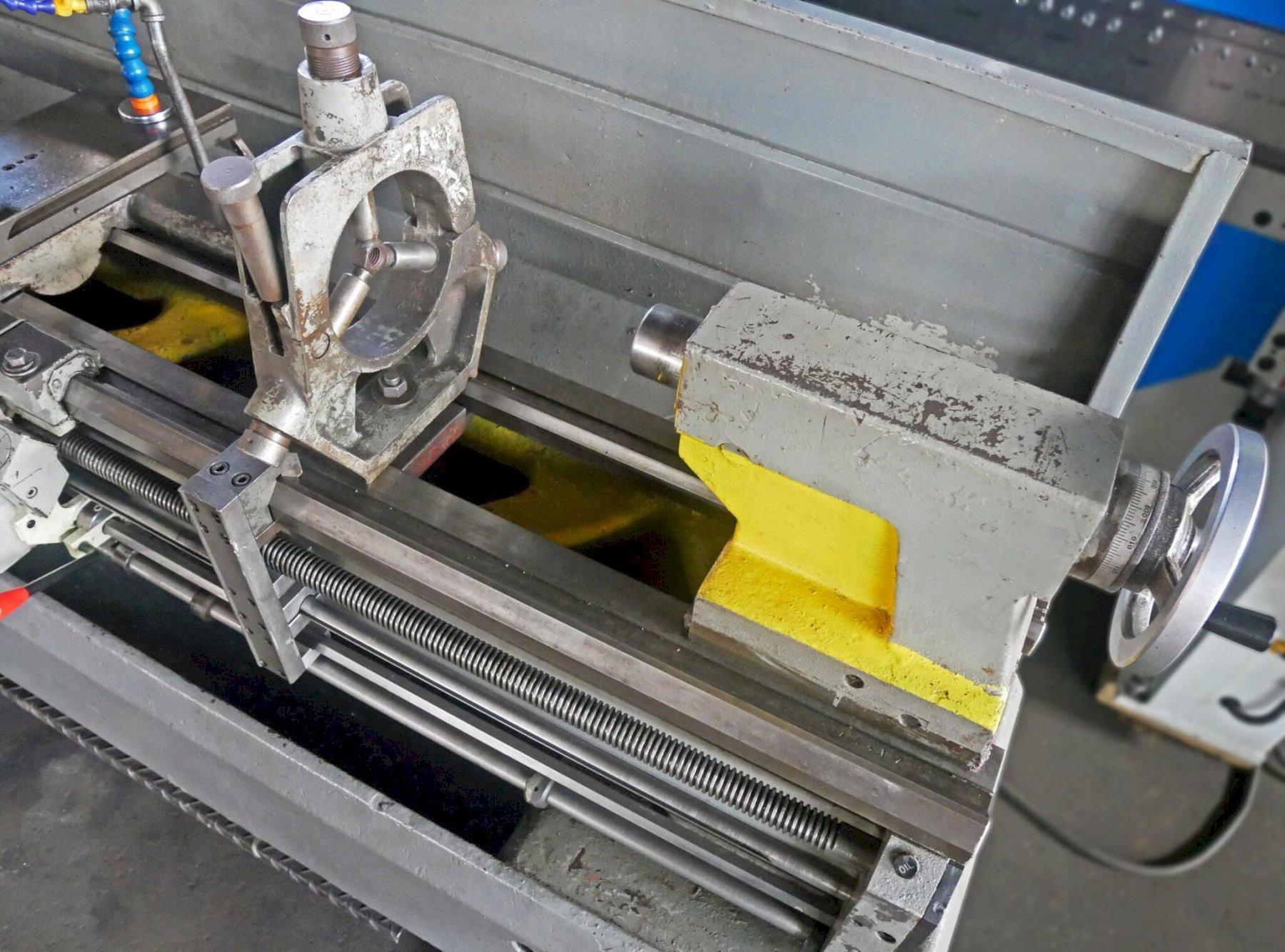

| Tailstock Spindle Travel | 6 inches |
| Tailstock Taper | #4 MT |
| Motor | 7.5 HP |
| Dimensions | 114" x 44" x 63"H |
| Weight | 4750 pounds |
