Digital LCD Scales on X and Y Axes Provide Readings to 0.0005″
Output from Scales is Compatible with most SPC Systems

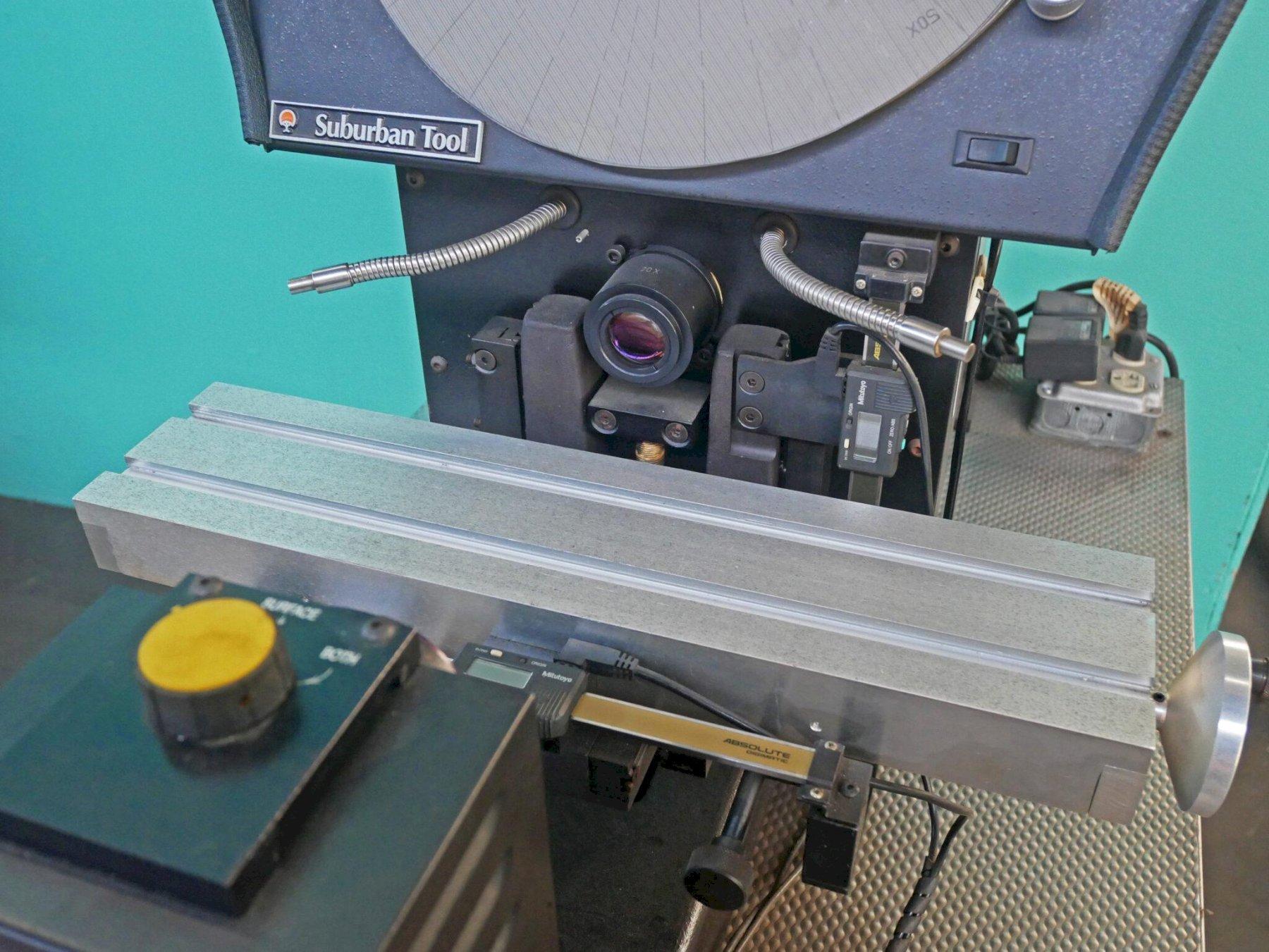

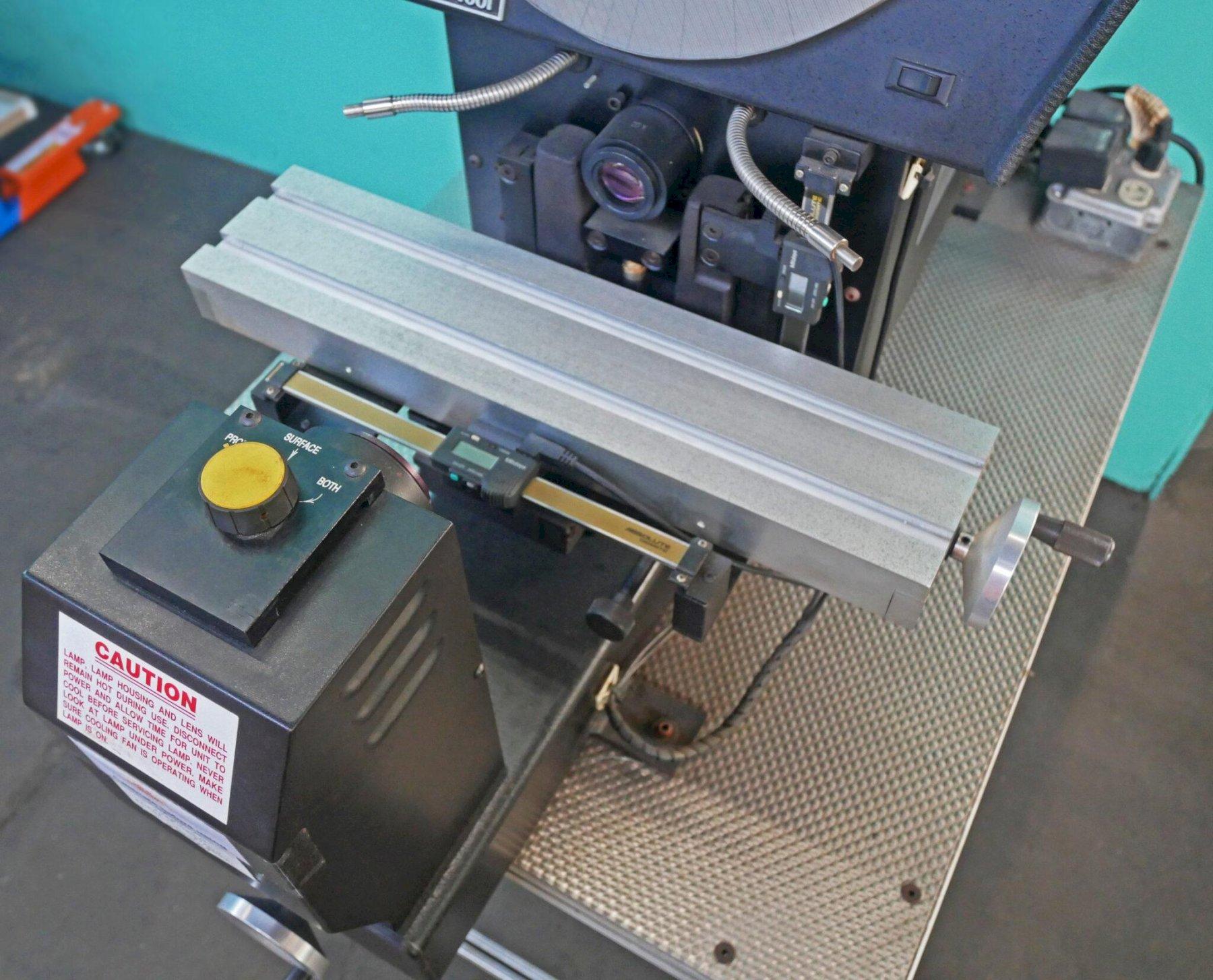

High Capacity 4 1/2″ x 19″ Stage with 8″ Horizontal and 4″ Vertical Travel
Ball Way Construction Handles Loads to 100 Lbs.
Two Long-Life Tungsten-Halogen Light Sources
Extra Bright Surface Illumination through Duplex Fiber Optics

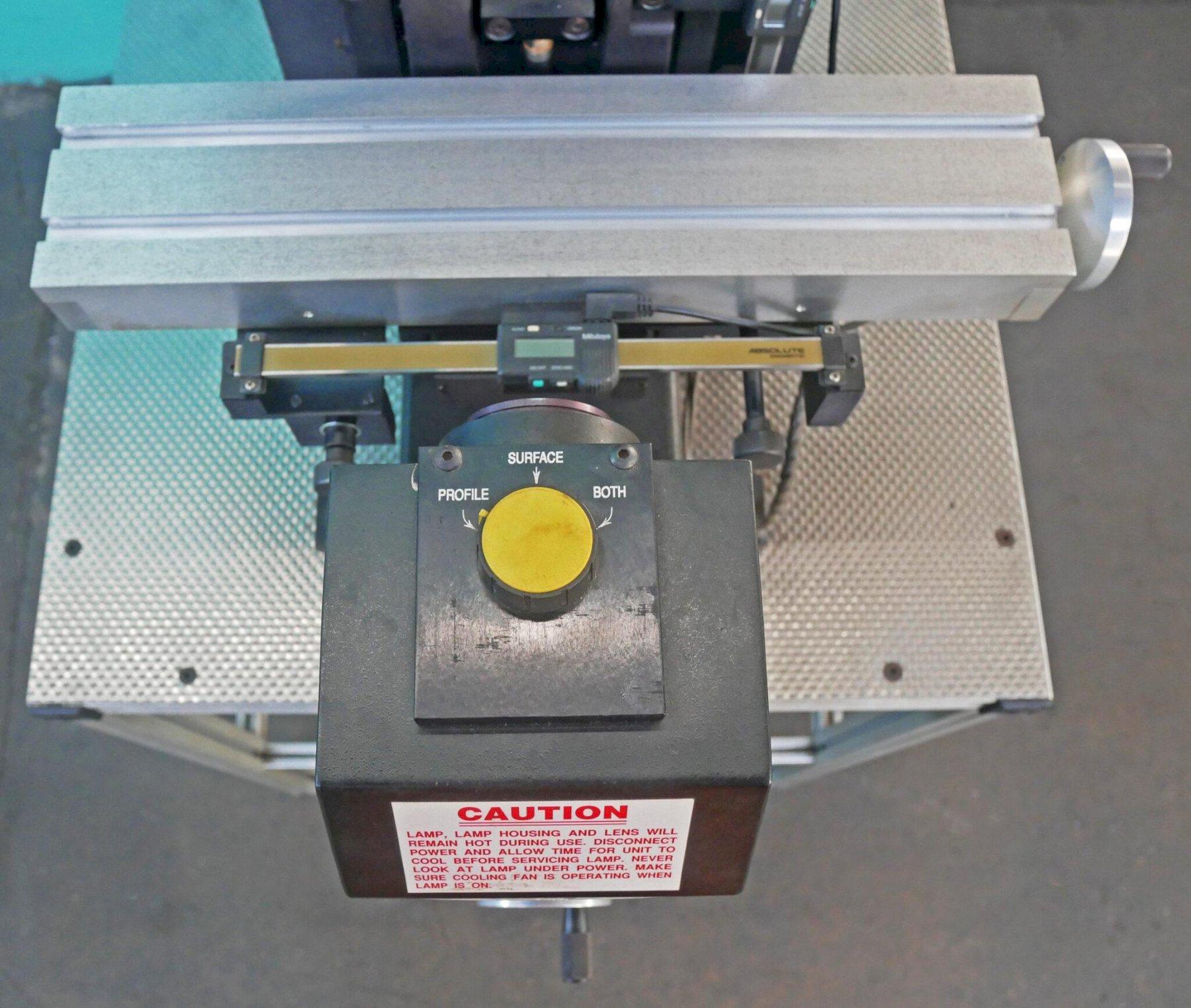

Individual Switches Select Profile, Surface, or Combination Surface-Profile Illumination Modes
Heavy-Duty Monorail Type Formed Steel Frame

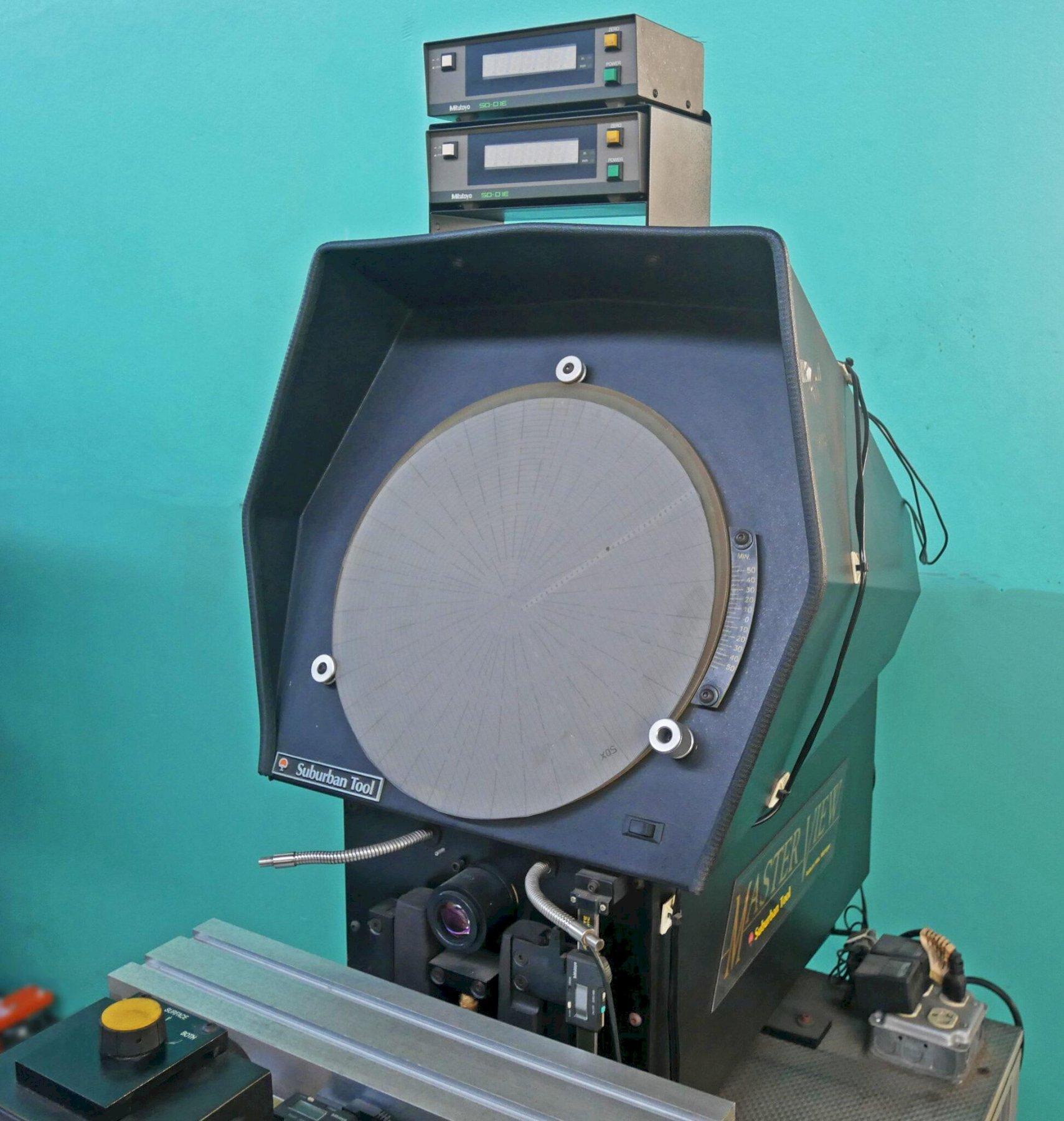

Rotating Frosted Glass Screen with 90° Crosslines and 360° Protractor Markings
Vernier Readings to 5 Minutes of Arc
10 Power Lens System
Clip-On Overlay Chart Clips

Mechanical Specifications:
Dimensions: 48 1/2″ x 22 1/4″ x 34″ H
