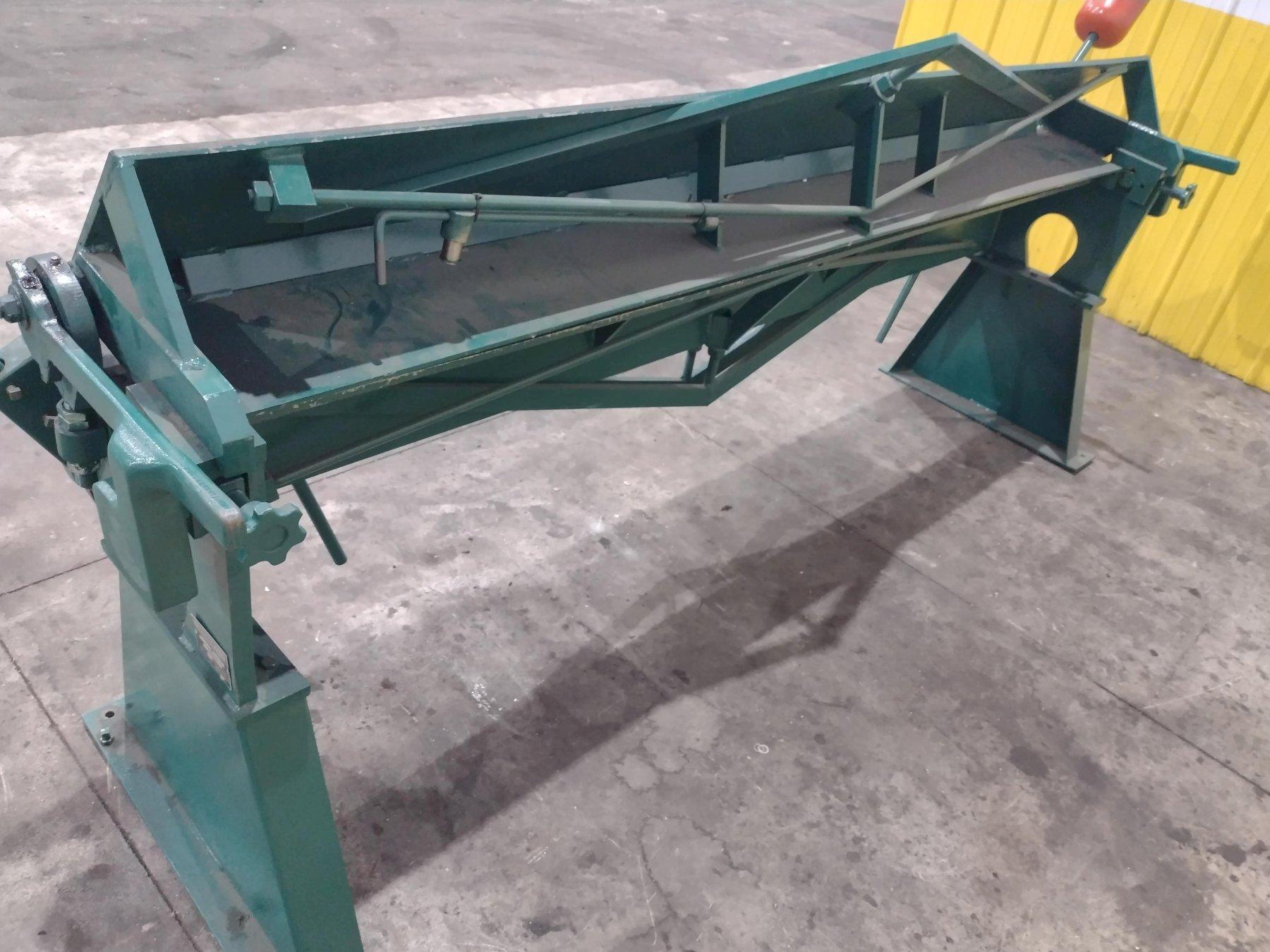

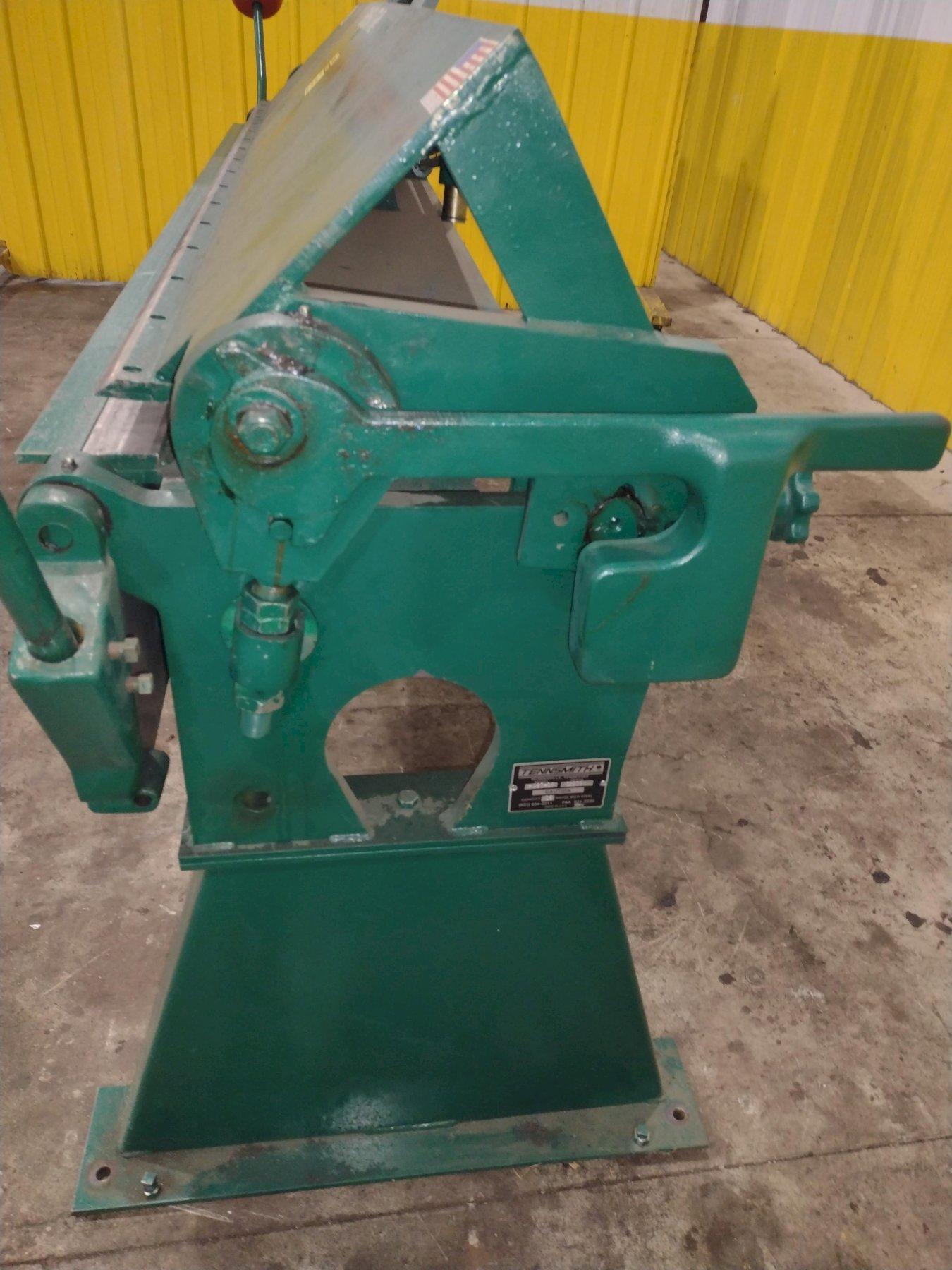

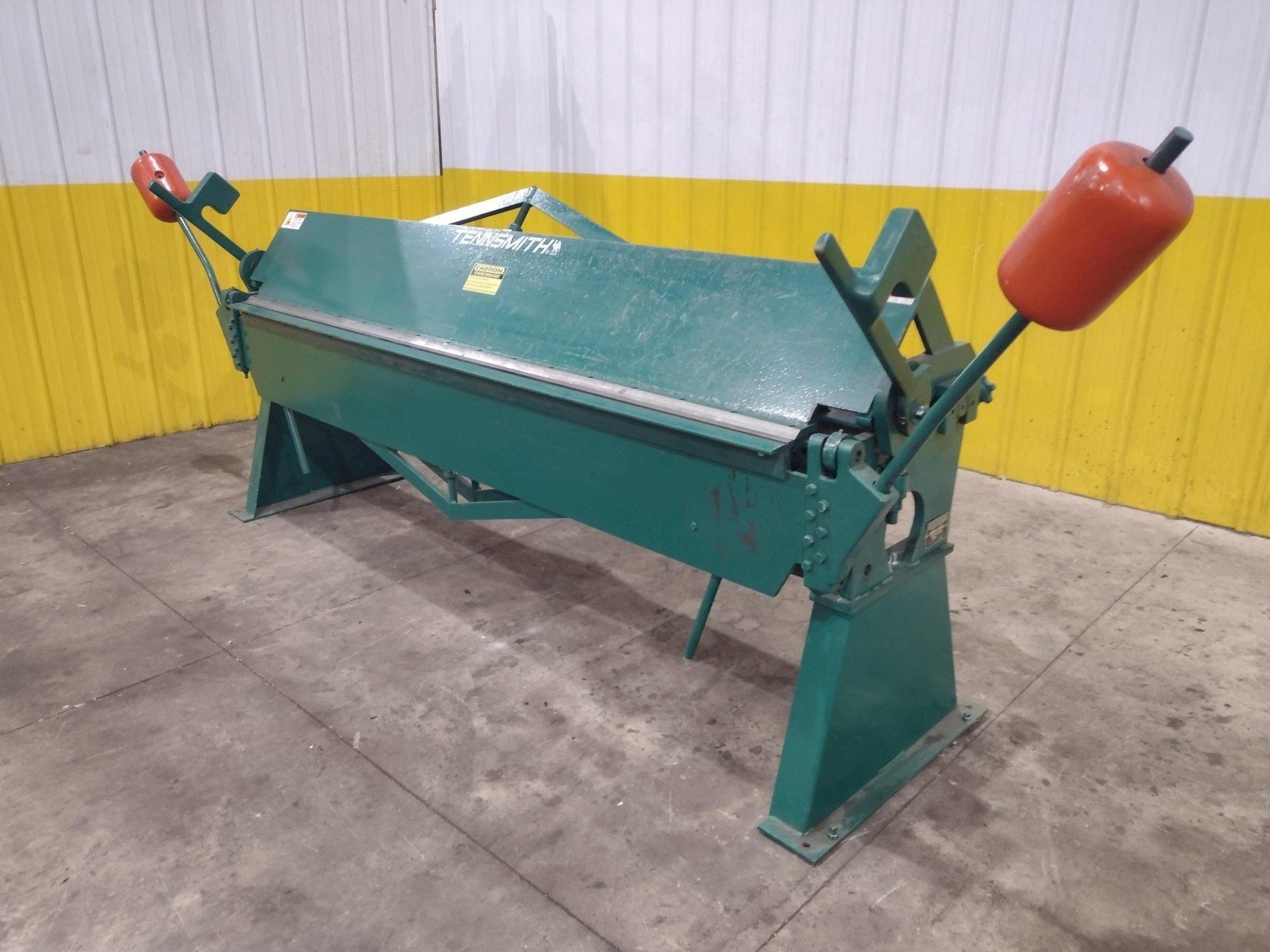

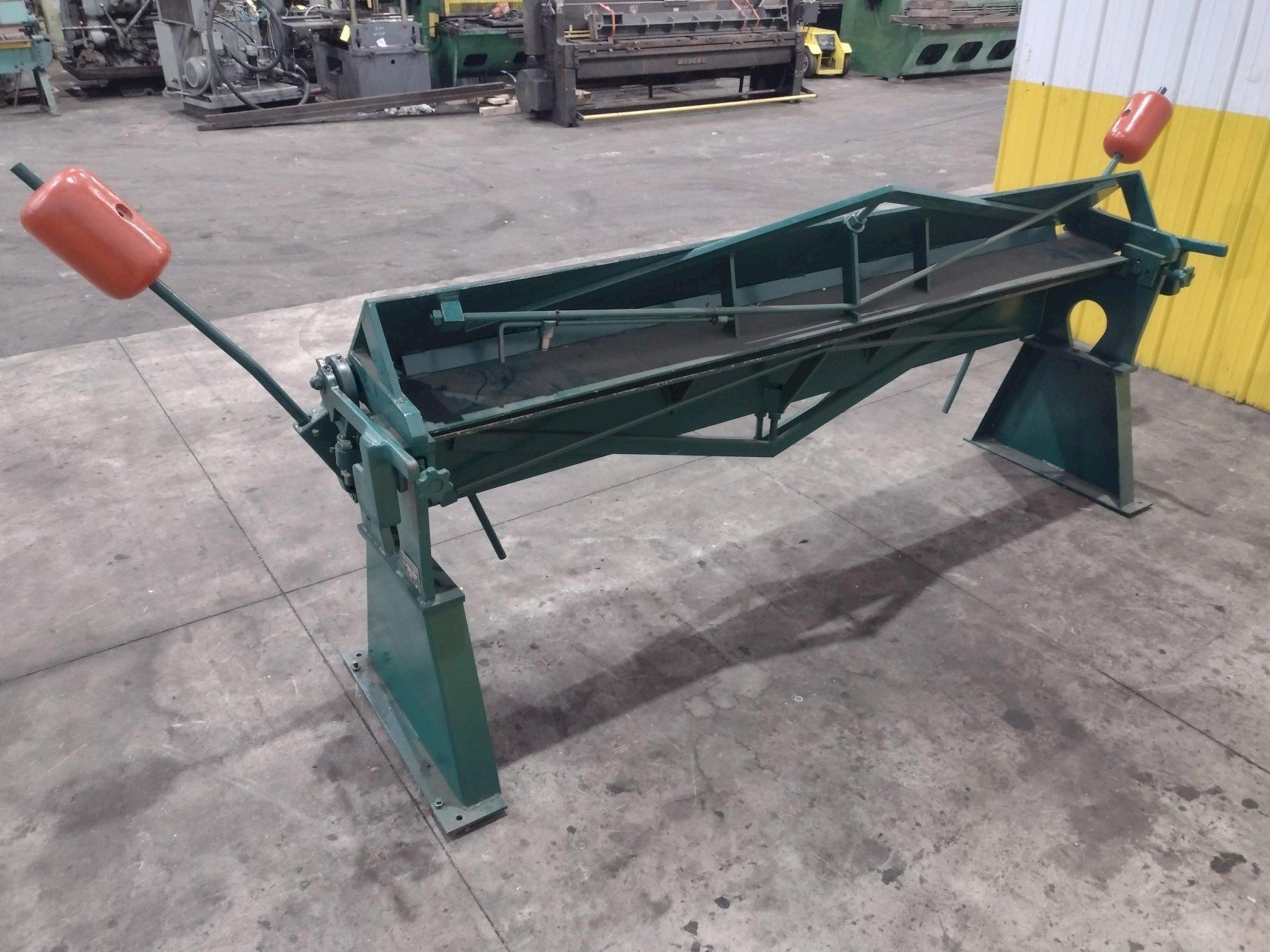

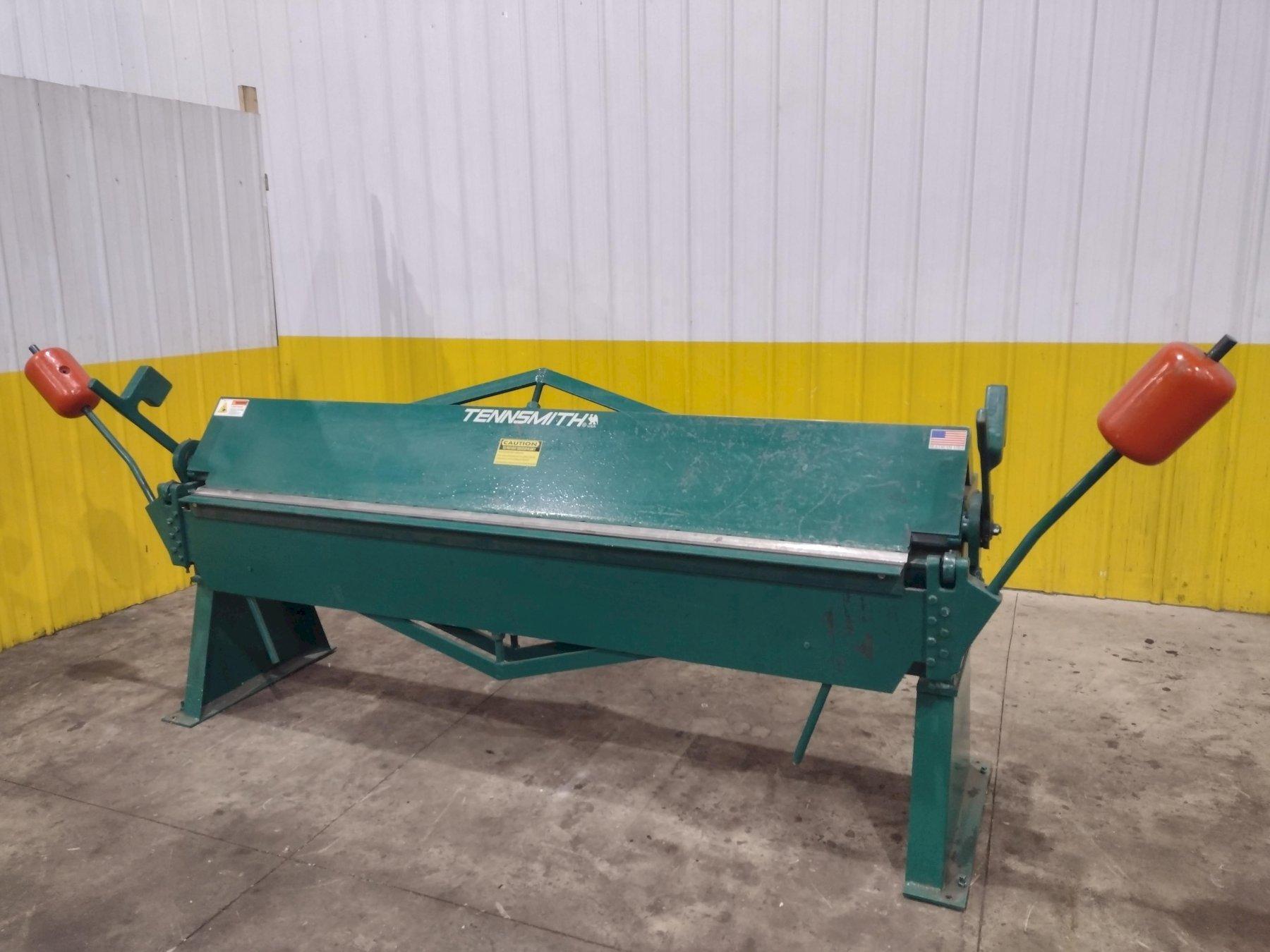

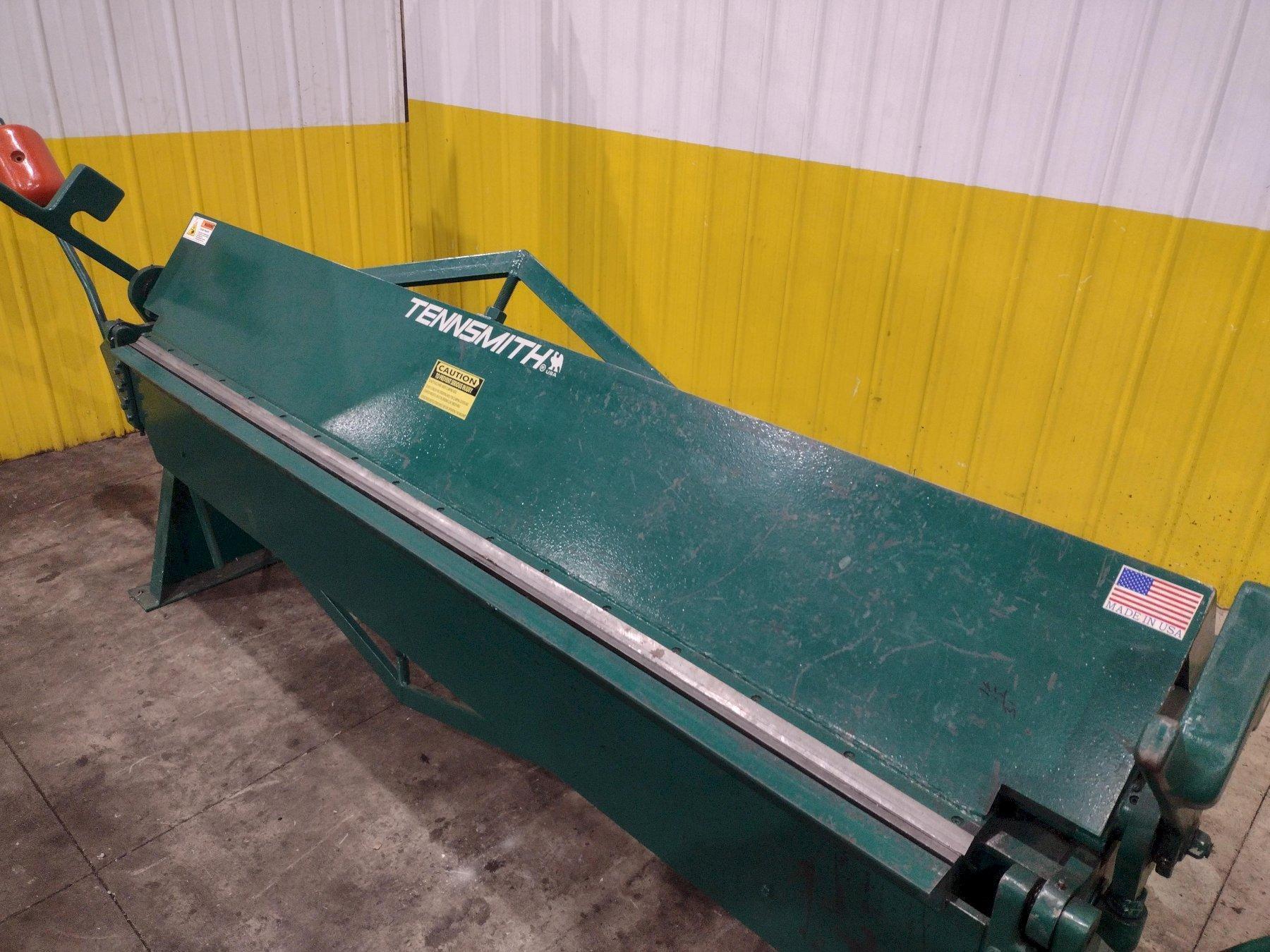

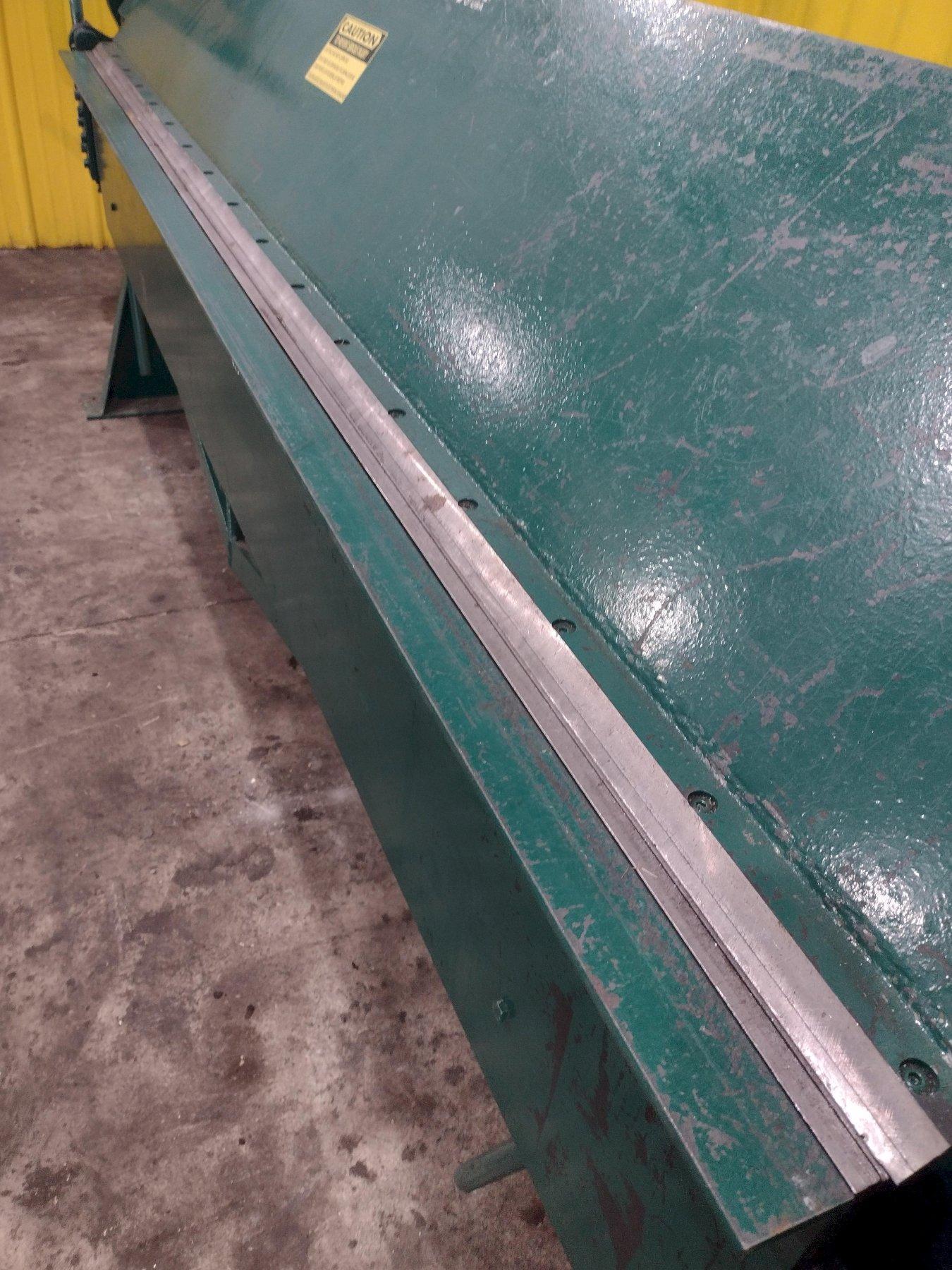

Tennsmith 8′ x 16 Gauge Manual Hand Apron Bending Brake, Mdl. HB97-16

Tennsmith 8' x 16 Gauge Manual Hand Apron Bending Brake, Mdl. HB97-16

Brand
TENNSMITH

Model
HB97-16

Type
Brakes, Apron

Stock #
8269085

Condition
Very Good

Year

Location
Toledo, Ohio
United States

Request a Quote

Specifications

Working Length	96 inches
Mild Steel Capacity	16 Gauge (1.5mm)
Stainless Capacity	20 Gauge (.9mm)
Max Lift of Beam	1.875"
Front to Rear Adjust	5 inches
Min Reverse Bend	.25"
Minimum Flange Capacity	1 inches
Maximum Forming Length	97 inches
Dimensions	140"L x 52"W x 60"H
Weight	1675 pounds

Equipped With

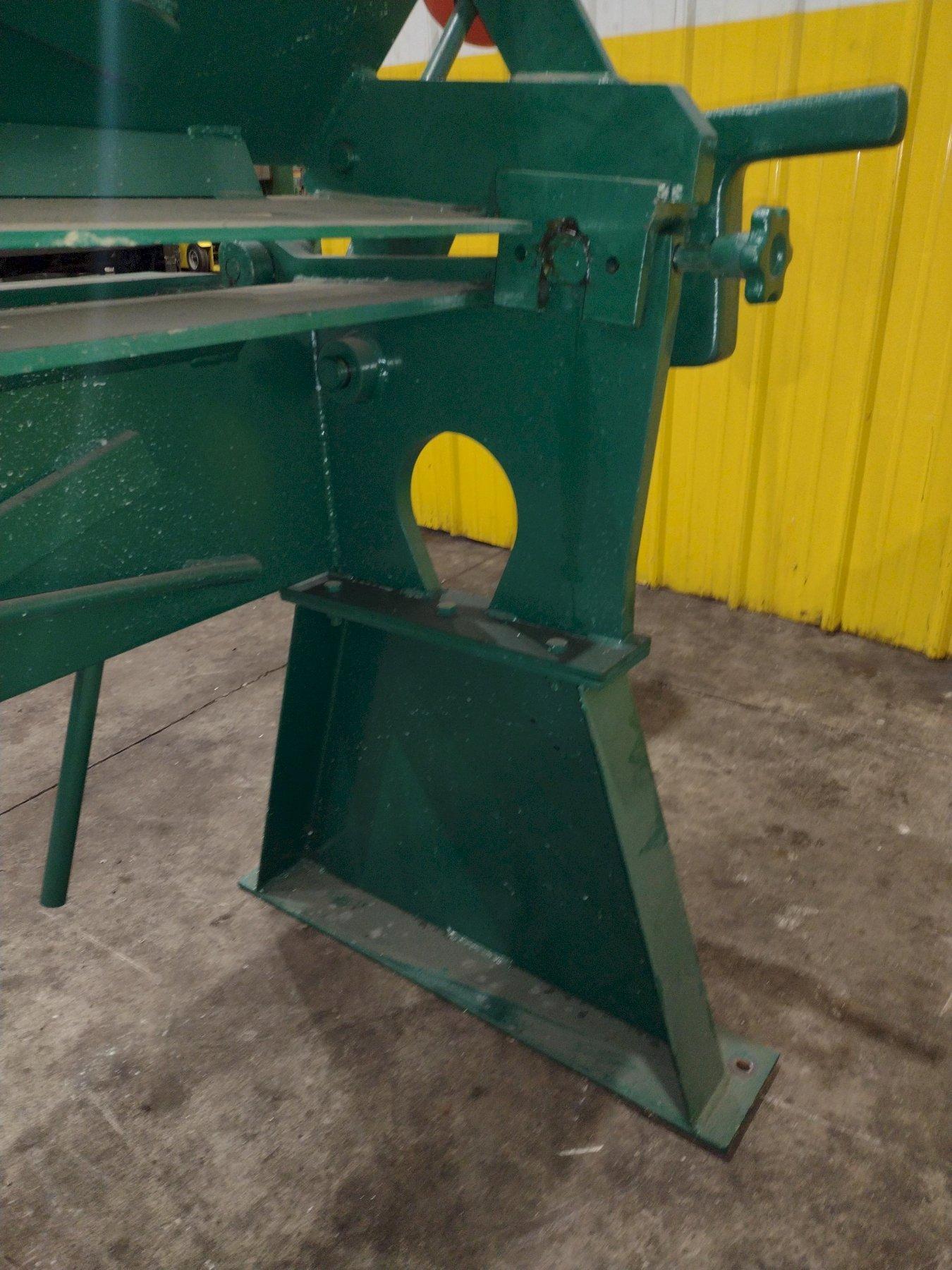

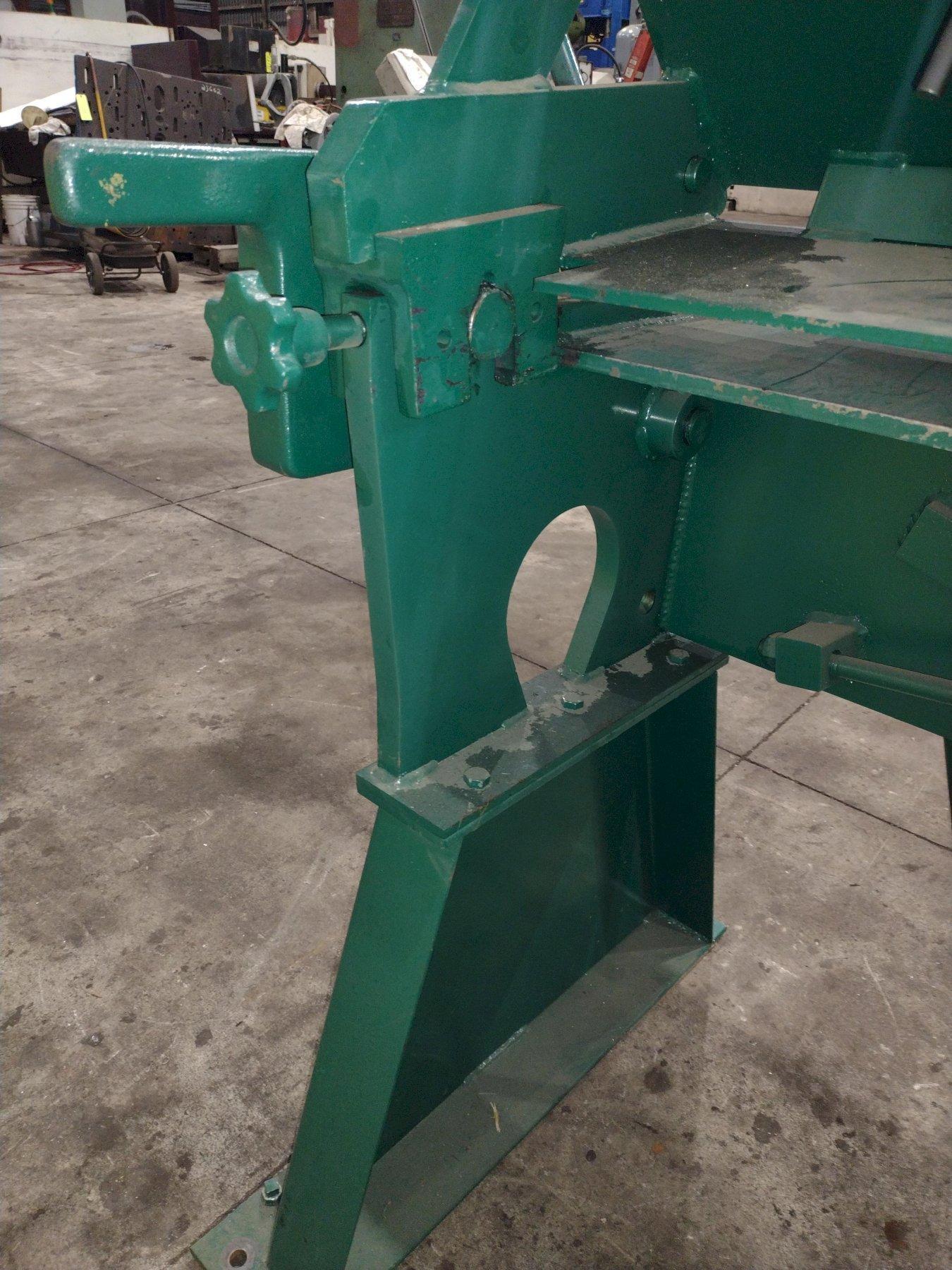

Leveling Screws and Lock Nuts on the Pedestals
Jack Screws and Tensioner Bolts on the Apron

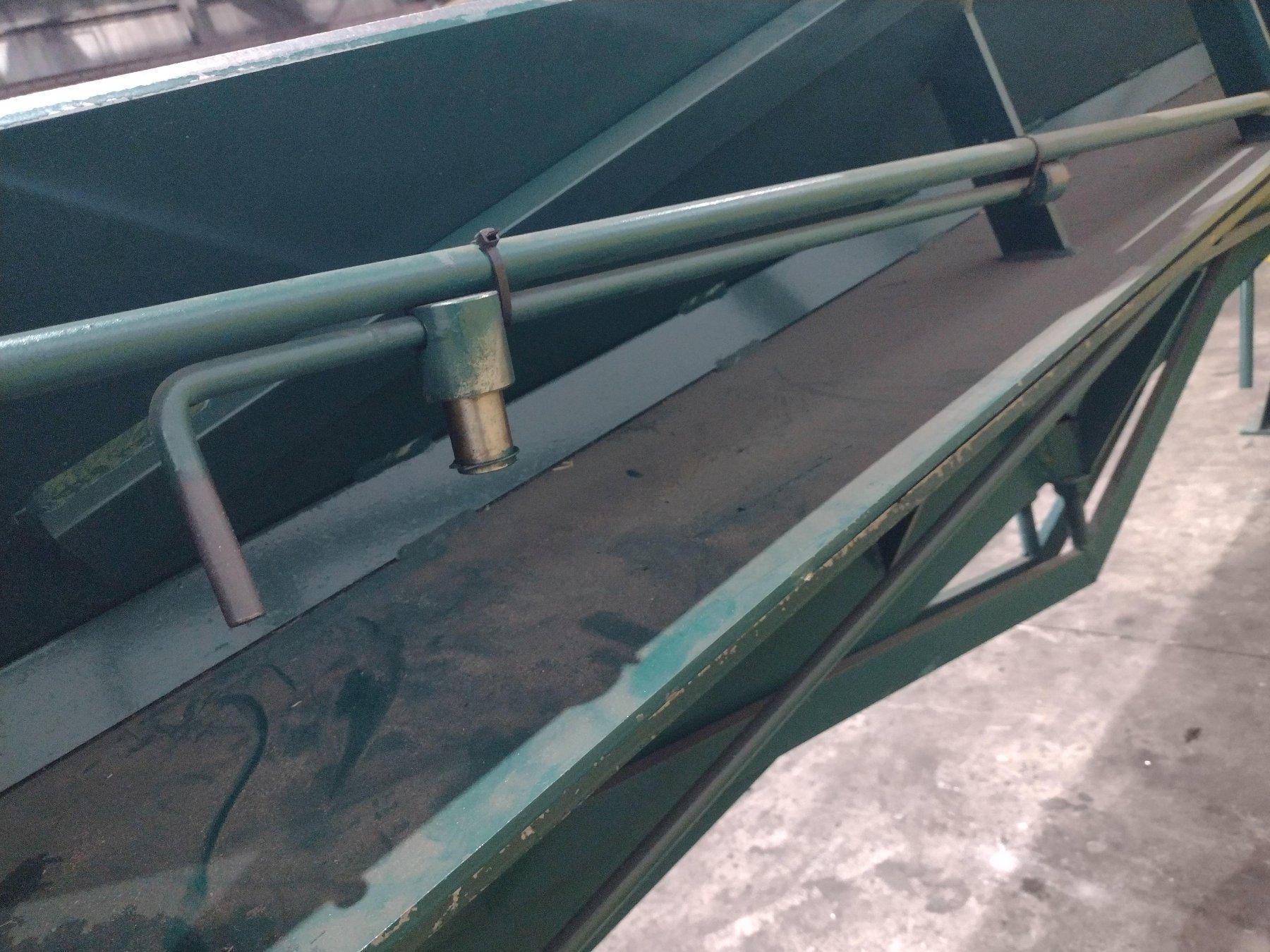

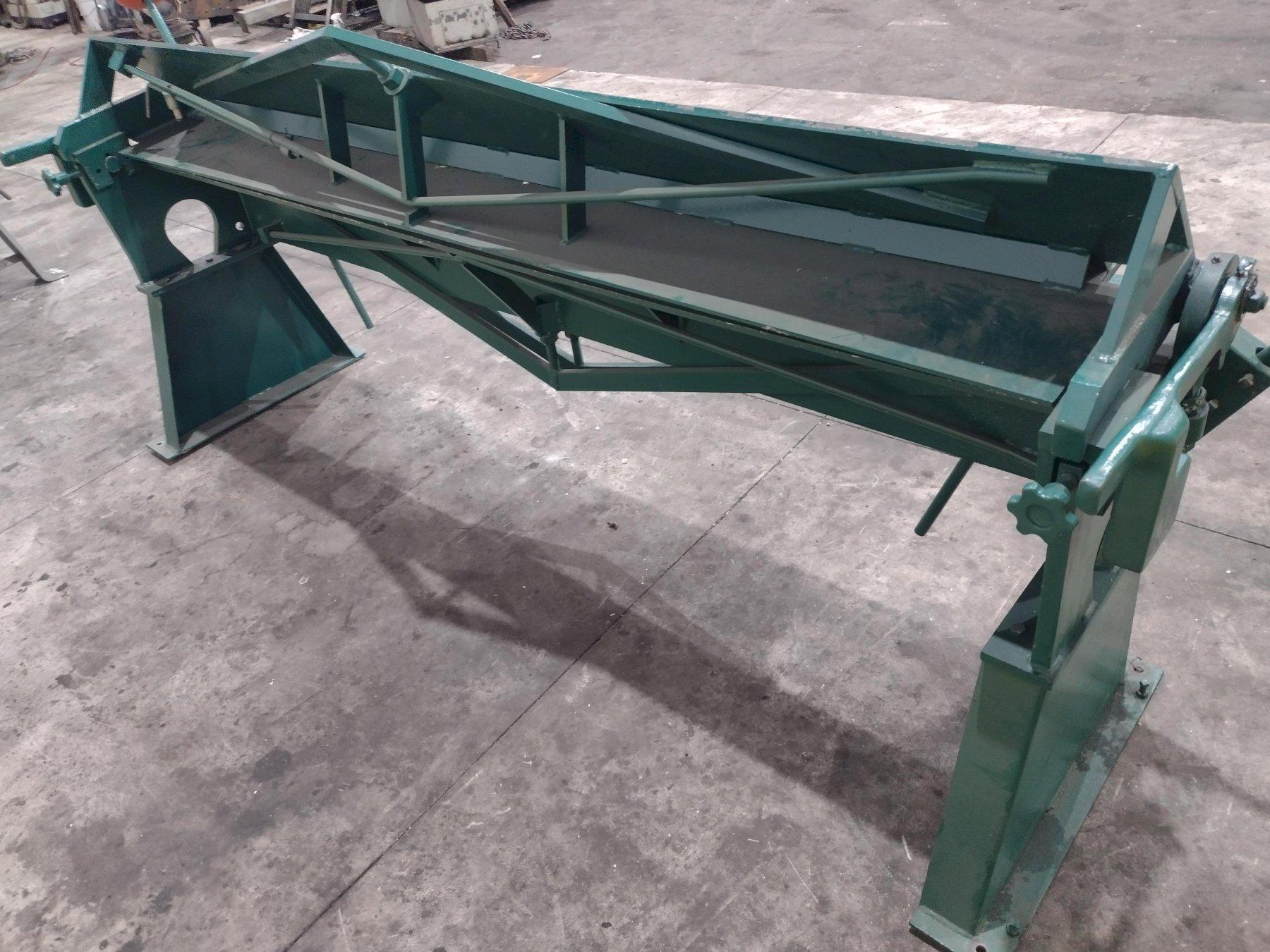

Truss Rods on the Apron, Base and Upper Beam

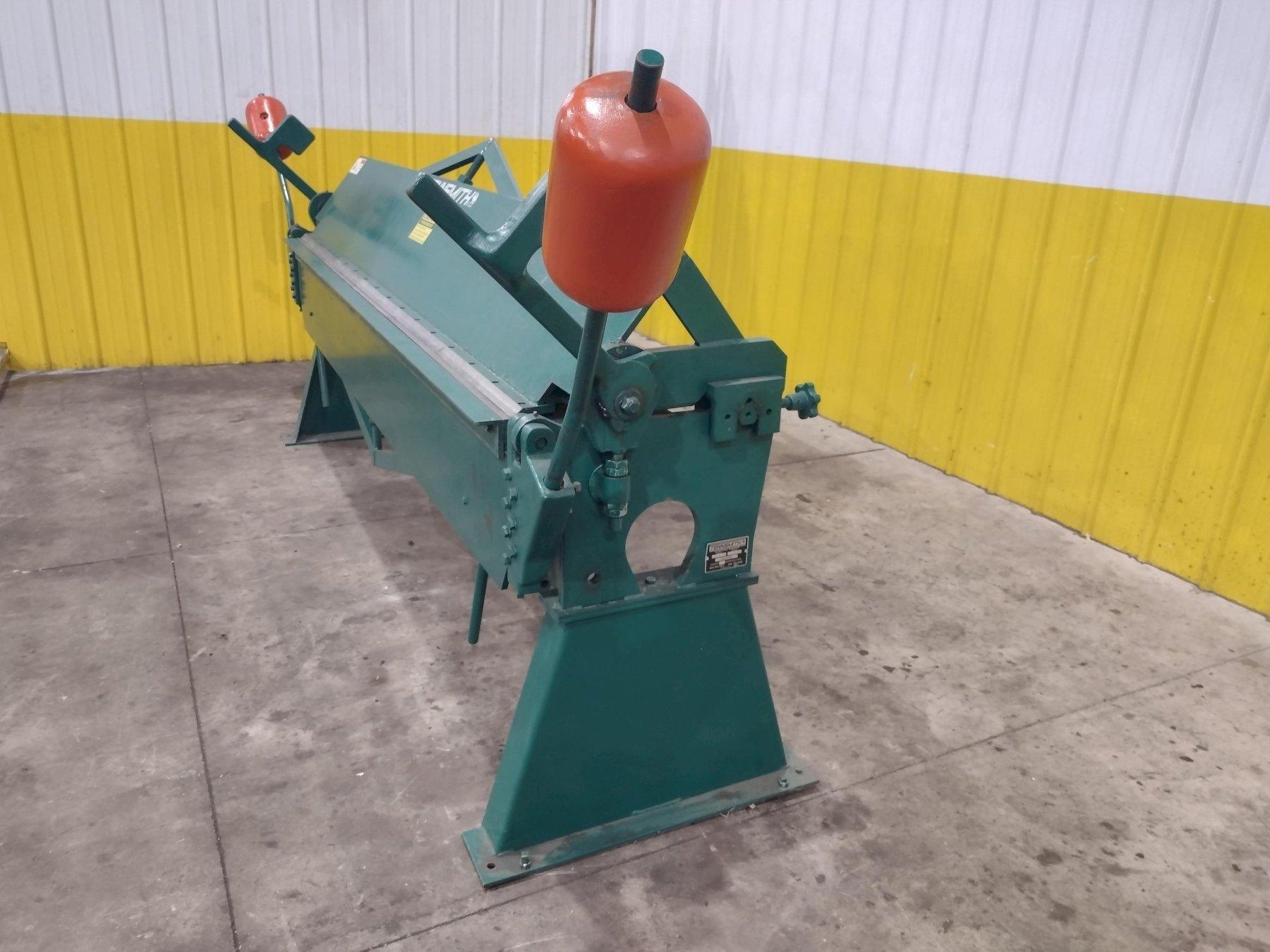

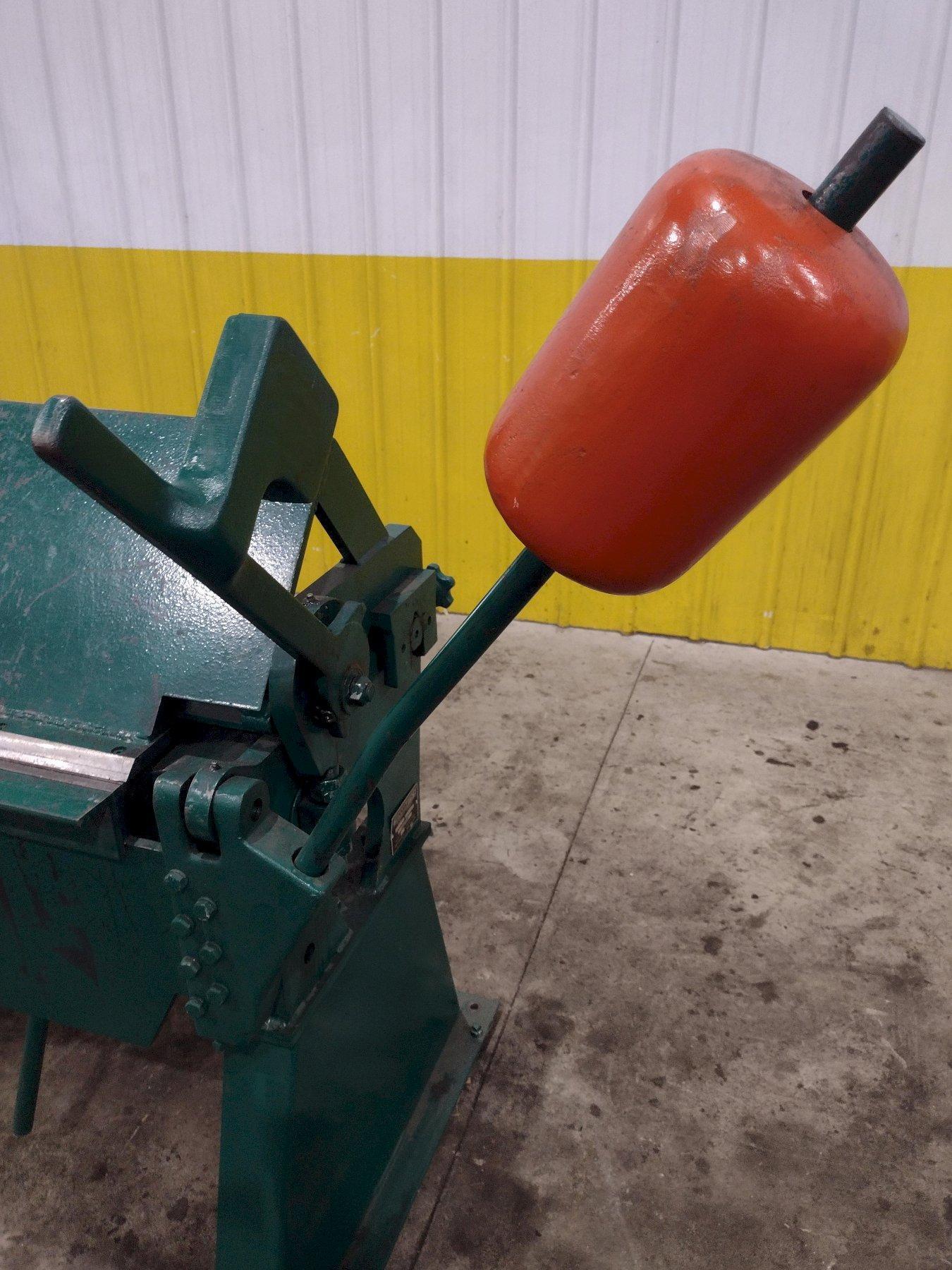

Fully Adjustable Counterbalances to Facilitate the Bending Process

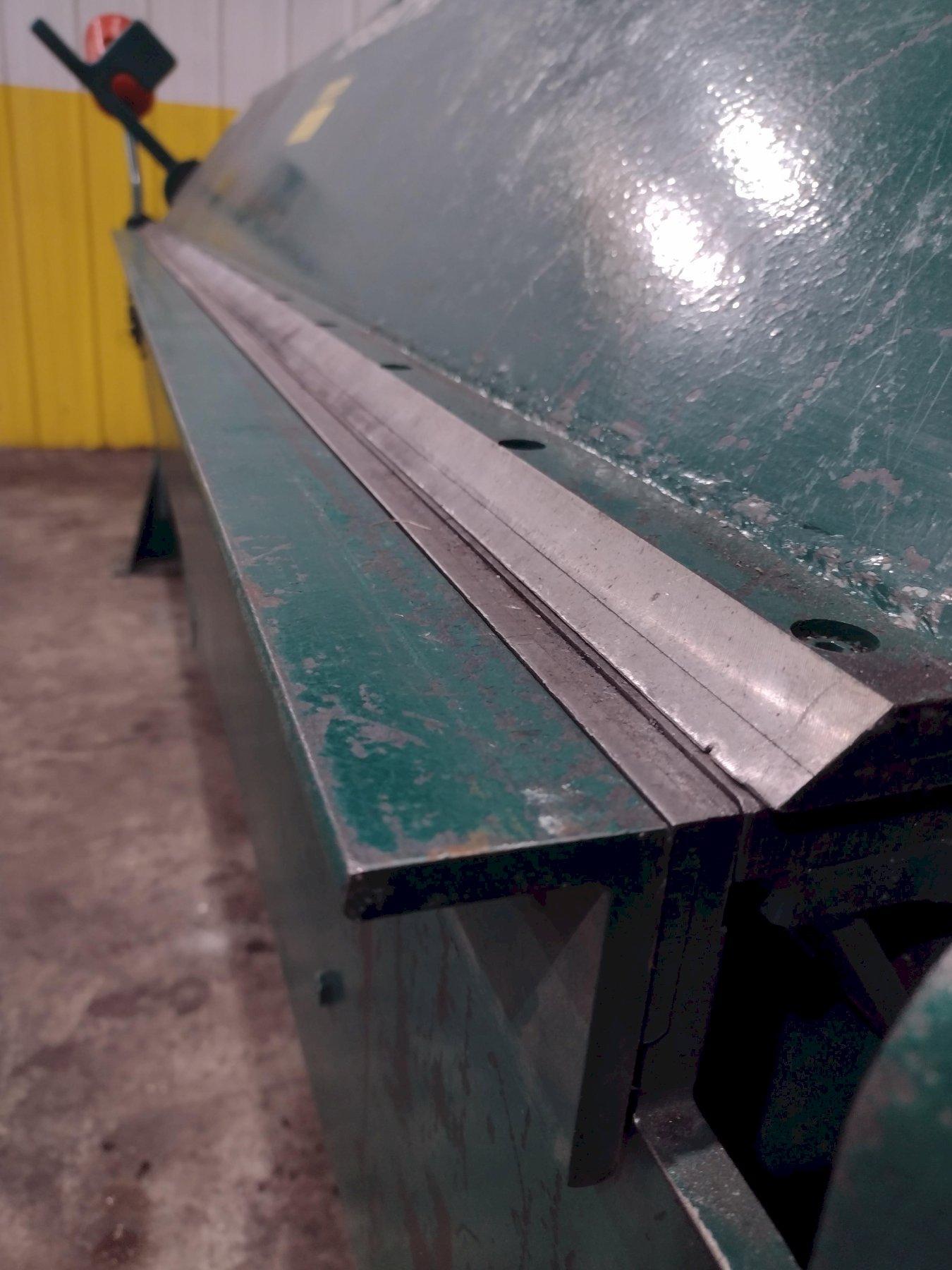

Replaceable Nose Bar and Apron Inserts

Removable apron angle and insert permit 1/4-inch reverse bends in lighter material.
Bored line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel.

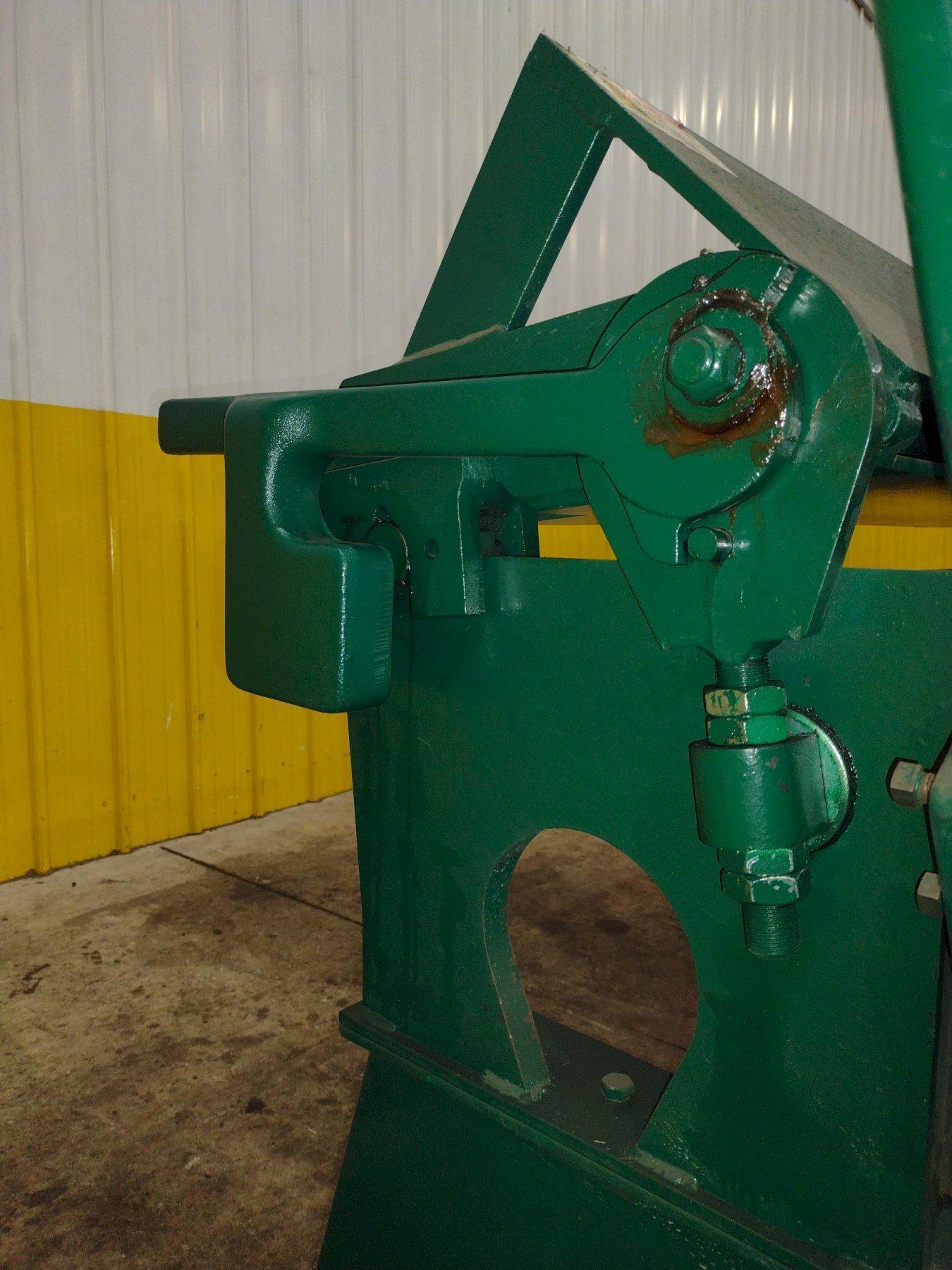

Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes.
